COLLIMATING LENS
Fiber collimators are devices for collimating the light coming from a fiber, or for launching collimated light into the fiber. Collimating lens is the g lens used in the fiber collimator.
general parameters
Diameter tolerance
:+0.005/-0.010mm
The length of tolerance
:+0/-0.04mm
Thermal expansion coefficient
:10 x 10-6/℃
The Angle of
:0°、2°、4°、6°、8°±20′
sample graph



product

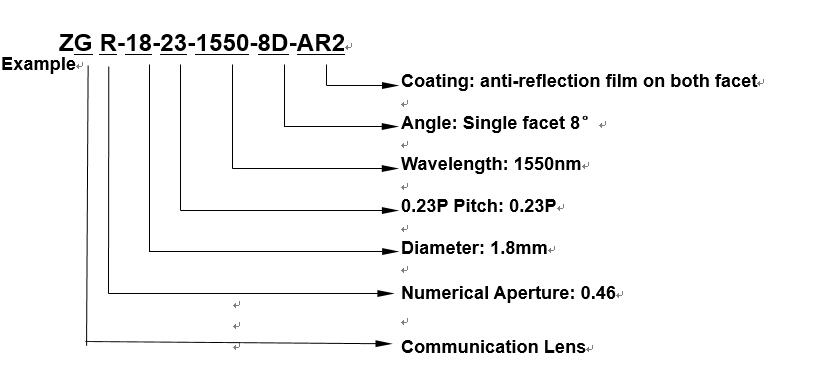

Commodity Code Dia.(mm) Pitch Wavelength(nm) Angle AR COATING Product Number price (quantity) add to cart to buy
More
ZGR 18 23 850 00 AR2 101011823208001 Inquiry
buy
ZGR 18 23 830 00 AR2 101011823207001 Inquiry
buy
ZGR 18 23 630 00 AR2 101011823202001 Inquiry
buy
ZGR 18 25 1260/1650 8D AR2 101011807326081 Inquiry
buy
ZGR 18 23 850 8D AR2 101011823208081 Inquiry
buy
ZGR 18 23 1550 00 AR2 101011823223001 Inquiry
buy
ZGR 18 23 800/900 8D AR2 101011823301081 Inquiry
buy
ZGR 18 23 600/900 8D AR2 101011823300081 Inquiry
buy
ZGR 18 23 600/900 00 AR2 101011823300001 Inquiry
buy
ZGR 18 23 1550 8D AR2 101011823223081 Inquiry
buy
ZGR 18 25 1250/1650 8D AR2 101011807324081 Inquiry
buy
ZGR 10 25 1250/1650 8D AR2 101011025324081 Inquiry
buy
ZGR 10 23 1260/1620 8D AR2 101011023323081 Inquiry
buy
ZGR 10 23 980/1550 8D AR2 101011023305081 Inquiry
buy
ZGR 10 23 850/1310 8D AR2 101011023304081 Inquiry
buy
ZGR 10 23 1550 8D AR2 101011023223081 Inquiry
buy
ZGR 10 23 1250/1650 00 AR2 101011023324001 Inquiry
buy
ZGR 10 23 1250/1650 8D AR2 101011023324081 Inquiry
buy
ZGR 10 25 1310/1550 8D AR2 101011025311081 Inquiry
buy
ZGR 10 25 980/1550 8D AR2 101011025310081 Inquiry
buy
ZGR 10 25 850/1310 00 AR2 101011025307081 Inquiry
buy
ZGR 10 25 1550 00 AR2 101011025223001 Inquiry
buy
ZGR 18 23 800/1100 00 AR2 101011823302001 Inquiry
buy
ZGR 18 23 800/1100 8D AR2 101011823302081 Inquiry
buy
ZGR 18 25 900/1100 8D AR2 101011825303081 Inquiry
buy
ZGR 18 25 800/900 8D AR2 101011825301081 Inquiry
buy
ZGR 18 25 1550 8D AR2 101011825223081 Inquiry
buy
ZGR 18 25 1550 00 AR2 101011825223001 Inquiry
buy
ZGR 18 25 850/1310 8D AR2 101011825304081 Inquiry
buy
ZGR 18 25 980/1550 00 AR2 101011825305001 Inquiry
buy
ZGR 18 25 1310/1550 8D AR2 101011825311081 Inquiry
buy
ZGR 18 25 940/1550 8D AR2 101011825309081 Inquiry
buy
ZGR 18 25 850/1000 8D AR2 101011825306081 Inquiry
buy
ZGR 18 25 980/1550 8D AR2 101011825305081 Inquiry
buy
ZGR 18 25 1310 00 AR2 101011825222001 Inquiry
buy
ZGR 18 25 1060 8D AR2 101011825221081 Inquiry
buy
ZGR 18 23 860/1310 8D AR2 101011823307081 Inquiry
buy
ZGR 18 23 860/1310 00 AR2 101011823307001 Inquiry
buy
ZGR 18 23 980/1550 8D AR2 101011823305081 Inquiry
buy
ZGR 18 23 900/1100 8D AR2 101011823303081 Inquiry
buy
ZGR 18 23 980/1310 00 AR2 101011823310001 Inquiry
buy
ZGR 18 23 1310/1550 8D AR2 101011823311081 Inquiry
buy
ZGR 18 25 980 8D AR2 101011825209081 Inquiry
buy
ZGR 18 25 850 8D AR2 101011825208081 Inquiry
buy
ZGR 18 23 1250/1650 8D AR2 101011823324081 Inquiry
buy
ZGR 18 25 1260/1610 8D AR2 101011825322081 Inquiry
buy
technical data
applications
What is Fiber Collimator?

Fiber collimator is a passive device. It is a module that combines a fiber and a lens, as well as has a function to produce parallel beams. It is usually made of a curved mirror or lens with the light source placed at its focus, which is used to make divergent light into a parallel beam or coupler the parallel beam into the fiber. Fiber collimator is usually available with different wavelengths (850 nm, 980 nm, 1060 nm, 1310 nm, 1550 nm), which could be adjustable in practice.

Collimating lens is the grin lens used in the fiber collimator.

Top questions
What is Fiber Collimator?

Fiber collimator is a passive device. It is a module that combines a fiber and a lens, as well as has a function to produce parallel beams. It is usually made of a curved mirror or lens with the light source placed at its focus, which is used to make divergent light into a parallel beam or coupler the parallel beam into the fiber. Fiber collimator is usually available with different wavelengths (850 nm, 980 nm, 1060 nm, 1310 nm, 1550 nm), which could be adjustable in practice.

Collimating lens is the grin lens used in the fiber collimator.
